Product Description

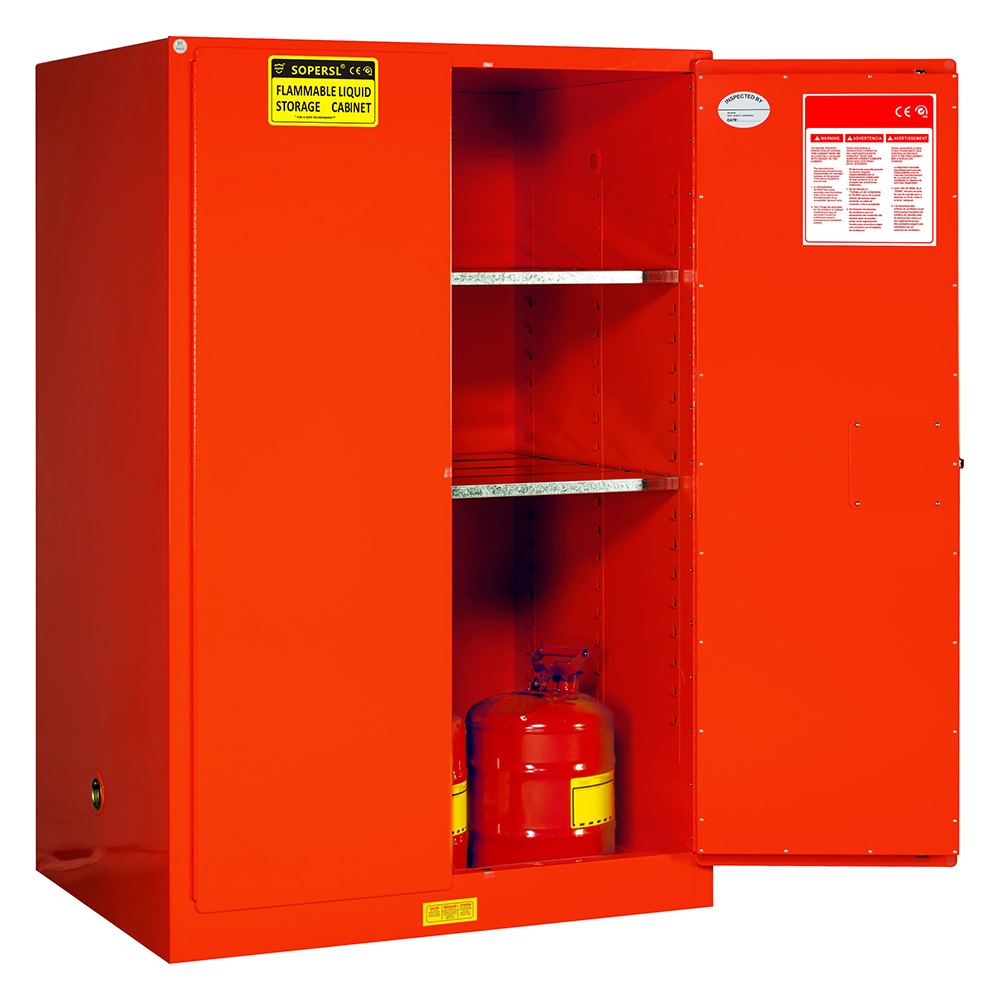

Paint & Ink Cabinets are designed for the safety storage of paint cans, aerosols and inks.. These highly visible and durable red  powder-coated cabinets features a red "Flammable - Keep Fire Away" warning on the front doors.Paint & Ink safety cabinets, 2 gallons to 90 Gallon capacity, are available based on the ultimate size of the cabinet selected. All interior and exterior surfaces, including shelves, are finished with industry standard red powder coating.  350 to 500 lb. capacity.

Paint & Ink Cabinets available in Manual Close Doors that will not close automatically and Self Close Doors that automatically close only when fusible link melts at 165°F.  Self Close Paint & Ink cabinets feature self-indexing doors that close in sequence to ensure tight closure and a recessed self-close mechanism that allows access to top shelf.

1. All Welded, Double Walled Construction, 16 gauge (1.2mm) Steel Paint & Ink Safety Cabinets reinforced with channel frame all around, base with 20 gauge(2.0mm) add strength.

2. Meet or exceed the NFPA Paint & Ink Liquid Storage Code #30 and the OSHA standard 1910.106 for storage of class I, II, and III liquids.

3. Double walled steel has 1-1/2" (38-mm)insulating air space.

4. Dual 2" vents with built-in flash arresters strategically placed at bottom and opposite top, can connect to an exhaust system to maintain safe temperatures.

5. Build-in grounding connector (on outside side panel) for easy grounding.

6. Galvanized steel shelves are adjustable on 2.2'' (55mm) space for versatile storage.

7. 2'' (50mm) leak-proof sump to contain spills.

8. Continuous piano hinge doors to open 180 degree.

9. Flush paddle handle on door engages the stainless steel 3-point locking system. Zinc lever lock. Two keys lock

Product Information

Technical Details

Additional Information

Plastics bag-PE around-carton box

Paint & Ink  storage cabinets, 1 gallon to 90 Gallon capacity, for safely and securely storing and organizing paint and ink cans. They are available based on the ultimate size of the cabinet selected. All interior and exterior surfaces, including shelves, are finished with industry standard Red and yellow powder coating.

Special corrosion resistant powder coated finish on all interior and exterior surfaces, including shelves, offers the end users an excellent protective storage vechile for acids and and other corrosives. Powder coating gives superior protection against chemical attack in event of a spill or splash. For additional protection, each cabinet is supplied with high density polypropelene trays for the shelves and bottom of cabinet.

Not recommended for use with Sulfuric, Nitric or Hydrochloric Acid.

See  the Poly Acid-Corrosive Cabinets that are suitable for use with these acids.
